High torque parallel gearboxes with long center distance RXP 800
The new range of universal parallel shaft gearboxes sets a new standard in the market, having adequate sizing which ensures constant and optimum reliability in the toughest working conditions. This range is an effective response to the power transmission needs of medium-heavy and heavy industry. To complete the range, we also made the same gearboxes with long center distance. The increased load capacity of cylindrical gears and bearings has reduced the size of gearboxes in the market, reducing the shaft center distance between input and output. With this new line of drives you are free to apply the electric motor and your application from the same side, without sacrificing the strength that has always set them apart.
Main features
High reliability
High perfomances in continual use
Strength and solidity
Flexibility in applications
Full customization available
Specifications
-
Ratio
Min 1/1,11 - Max 1/801
-

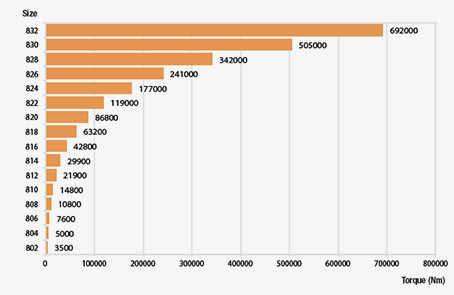

Torque (Nm)
Min 1400 - Max 692000
-
Power (Kw)
Min 0,72 - Max 9308
>
Documentation
INGLESE
Italiano
Tedesco
Francese
Spagnolo
Portoghese
MANUAL USE AND MAINTENANCE
Russo
Svedese
Finlandese
Turco
Bulgaro
Rumeno
Polacco
Ceco
Slovacco
Olandese
TechButton
Want to be sure not to make mistakes choosing the GEARBOX you need? TECH BUTTON is easy to use with its smart interface and it allows you to make the proper selection of gearboxes, geared motors and electric units, according to the catalogues, as well as download 2D and 3D drawings, commercial documents and technical datasheets.
Catalogue CAD 3D: CADENAS
Our product catalogue and configurator are also available on CADENAS, the tool that allows you to configure and download free design data of your gearboxes in over 150 native and neutral CAD formats.
To access this service, go to:
RED BUTTON
Service
THE SERVICE THAT BRINGS US CLOSER TO OUR CUSTOMERS ALL OVER THE WORLD AND ENSURES FAST ASSEMBLY AND SHIPMENT.
The world of S.T.M. Services is now enriched with RED BUTTON fast delivery service, which was born to satisfy the urgent need of our customers to be supplied with our gearboxes, geared motors and speed variators.
If you have to face an unexpected problem, if your production suddenly stops, if your warehouse inventory is not enough to fulfill your demands, S.T.M. is there to help you with its RED BUTTON service! It will take us only from 24 hours (for products, the components of which are already in stock) to 72 hours (for big dimension gearboxes, the components of which are already in stock) to supply you with the products you need.
